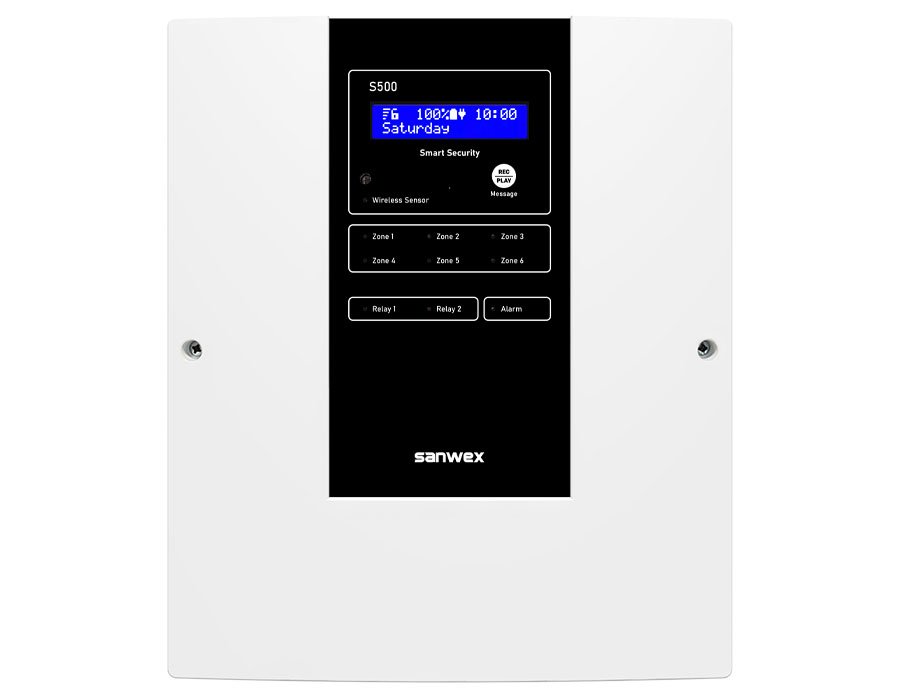

Sanwex S500
GSM-2G
GSM-2G network
6 wired zones and 20 wireless zones
2 programmable output relays to control electrical appliances
3 customizable lock modes
Powerful ARM Cortex-M3 chipset
200 most recent event reports
Battery failure reports
Separate battery charge regulator
GSM 2G network support
6 wired zones + 20 wireless zones
24-hour zone
Pedal zone
Ding-dong mode
2 programmable output relays
Automatic zone deletion
Define 3 fully customized lock modes
Restrict remotes and users to specific hours and days
Record two separate voice messages for burglary and fire alarm modes
Remotely disable wireless zones and eyepieces
Speaker wire disconnection report
AUX fuse disconnection report
Power disconnection and connection report via SMS
Battery charge reduction report
Battery failure report
SIM card inventory periodic report
Report of the last 200 events
Choose a custom name in reports related to zones, wireless eyepieces and remotes
Automatic activation and deactivation of the security system at a specific time according to the schedule
Automatic activation and deactivation of output relays at a specific time according to the schedule
Ability to create 10 user accounts as an administrator
Ability to create 20 user accounts with each user’s access level to the device
Ability to add 20 remotes with each remote’s access level
16×2 character display with automatic backlight adjustment
Built-in speaker
Battery installation capacity up to 9 ampere hours
Battery charging current control to increase battery life
Network
GSM 850,900,1800,1900 MHz
Nano SIM card slot
Connections
6 wired zones + 20 wireless zones
2 relay outputs
433 MHz radio signal receiver
Piezo siren output
Speaker output
Remote
2 x 433 MHz code learning remotes (20 definable)
Processor
ARM Cortex M3
Display
16×2 character LCD with blue background
Sensors
Light sensor, microphone
Built-in speaker
1 watt
Installable battery
12 volts, max. 9 ampere hours
Power
220 ~ 240 V AC
Dimensions
276 × 236 × 88 mm
Box contents
S500 device + two 433 MHz code learning remotes + battery interface + product manual
Sunwex is a manufacturer of a new generation of burglar alarm and building intelligence systems.
