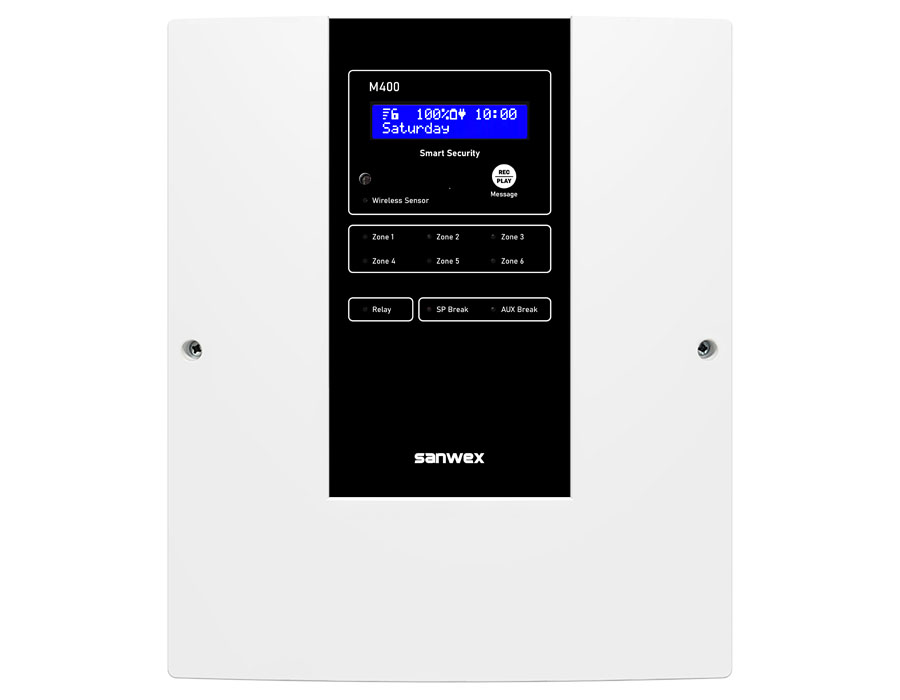

Sanwex M400
GSM-2G
GSM-2G network
6 wired zones and 20 wireless zones
1 programmable output relay to control electrical appliances
3 customizable lock modes
Powerful ARM Cortex-M3 chipset
200 recent event logs
Separate battery charge regulator
GSM 2G network support
6 wired zones + 20 wireless zones
24-hour zone
Pedal zone
Ding-dong mode
1 programmable output relay
Automatic zone deletion
Define 3 fully customized lock modes
Restrict remotes and users to specific hours and days
Record two separate voice messages for burglary and fire alarm modes
Remotely disable wireless zones and eyes
Speaker wire disconnection report
AUX fuse disconnection report
Power disconnection and connection report via SMS
Battery charge reduction report
SIM card inventory periodic report
Report of the last 200 events
Choose a custom name in reports related to zones, wireless eyes and remotes
Automatic activation and deactivation of the security system at a specific time according to the schedule
Automatic activation and deactivation of the output relay at a specific time according to the schedule
Ability to create 10 user accounts as an administrator
Ability to create 20 user accounts as an user By determining the access level of each user to the device
Ability to add 20 remotes by determining the access level of each remote
16×2 character display with automatic backlight adjustment
With built-in speaker
Capacity to install batteries up to 9 ampere hours
Battery charging current control to increase battery life
Network
GSM 850,900,1800,1900 MHz
Nano SIM card slot
Connections
6 wired zones + 20 wireless zones
1 relay output
433 MHz radio signal receiver
Piezo siren output
Speaker output
Remote
2 x 433 MHz code learning remotes (20 definable)
Processor
ARM Cortex M3
Display
16×2 character LCD with blue background
Sensors
Light sensor, microphone
Built-in speaker
1 watt
Installable battery
12 volts, max. 9 ampere hours
Power
220 ~ 240 V AC
Dimensions
276 × 236 × 88 mm
Box contents
M400 device + two 433 MHz code learning remotes + battery interface + product manual
